ACP-4070-NANO

Mã sản phẩm: Không áp dụng Tình trạng: Còn hàng

Giá Liên hệ

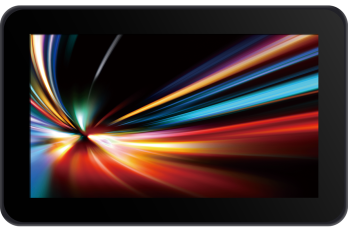

7” WSVGA Multi Touch AI Panel PC with NVIDIA® Jetson Orin Nano™

Processor	NVIDIA® Jetson Orin Nano™ 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
System Memory	LPDDR5 8GB
LCD/CRT Controller	—
Ethernet	GbE LAN x2

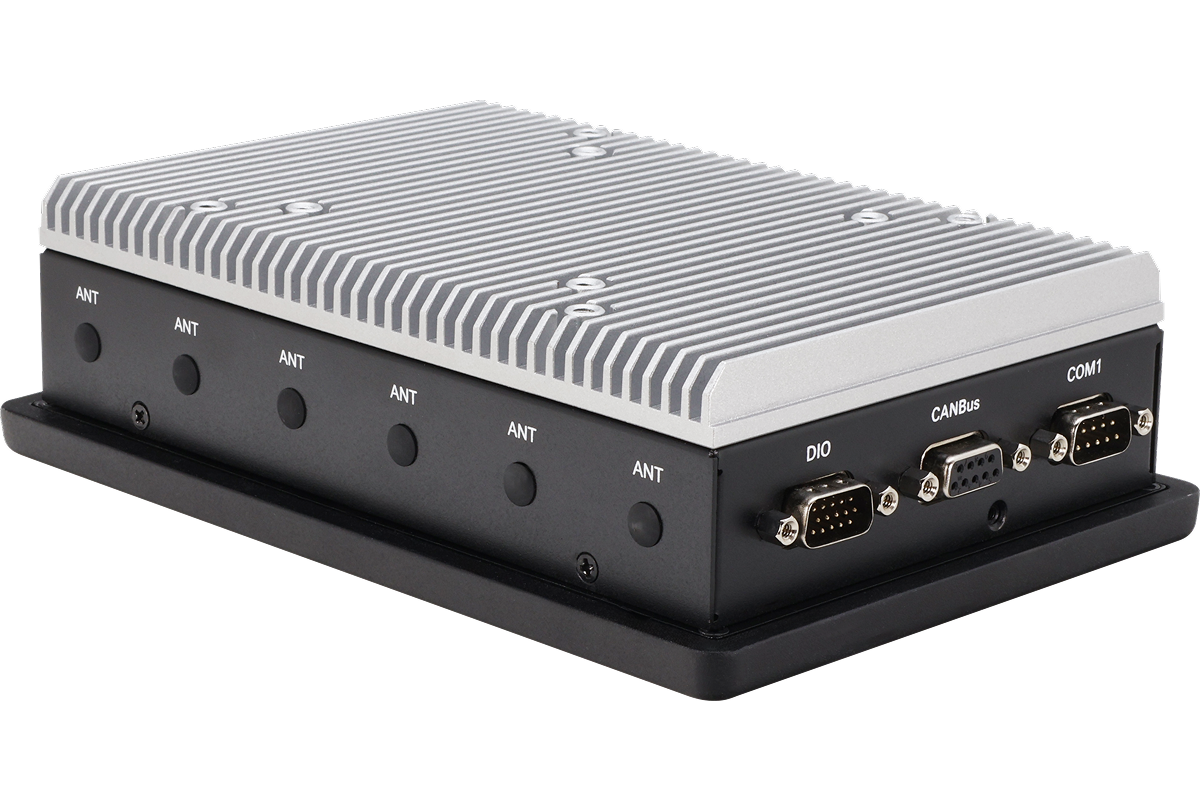

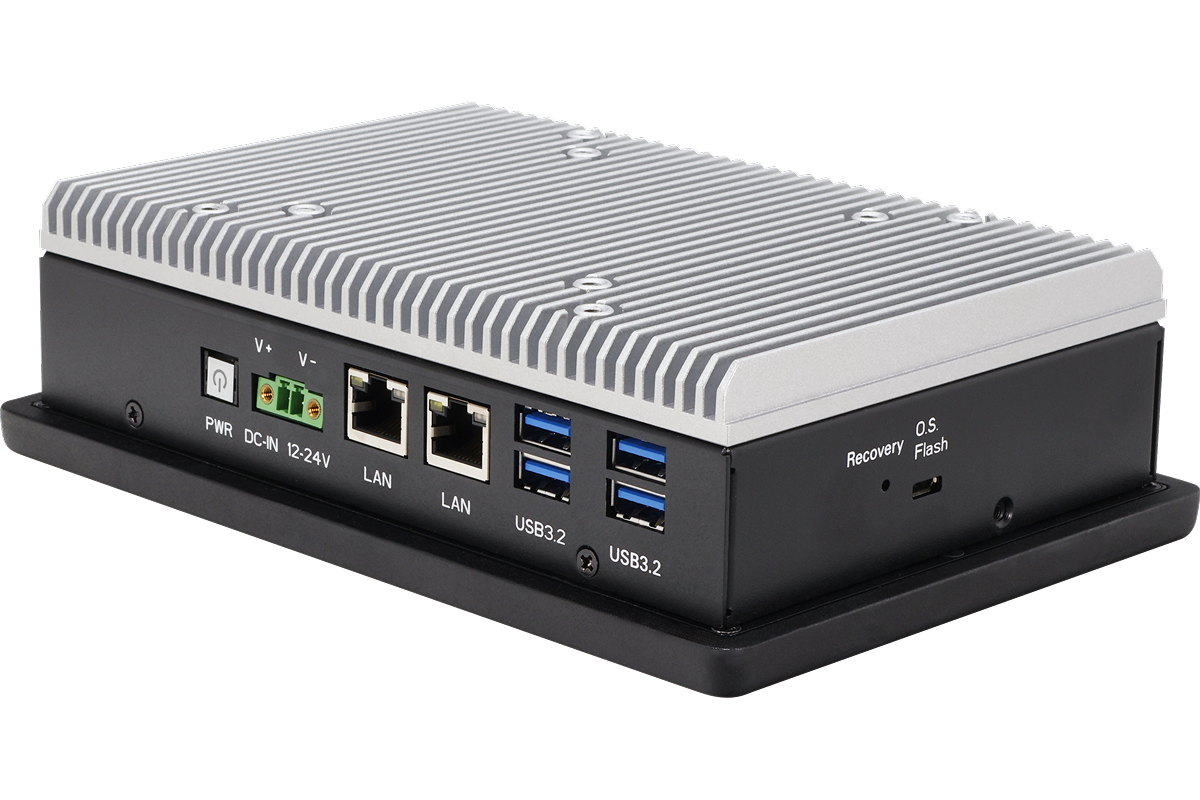

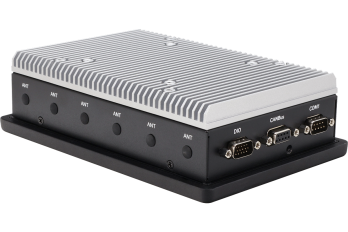

I/O Port	USB 3.2 Gen 2 (Type-A) x 4 GbE LAN x 2 Micro USB x 1 for OS Flash DB-9 x 1 for CANBus DB-9 x 1 for RS-232/422/485 DB-15 x 1 for 8-bit DIO Power ON/OFF Switch x 1 Recovery Button x 1 Antenna Hole x 6
Storage Disk Drive	M.2 2280 M-Key x 1 for Storage (Default: 128GB)
Expansion Slot	M.2 2230 E-Key x 1 M.2 3042/3052 B-Key x 1
OS Support	NVIDIA® Jetson™ Linux 36.4.4

Construction	Aluminum Front Bezel + Metal Chassis
Mounting	VESA 75/100
Dimension	7.7” x 5.3” x 2.2” (196.5mm x 135.0mm x 55.0mm)
Carton Dimension	11.0” x 8.7” x 6.1” (280mm x 220mm x 154mm)
Gross Weight	4.98 lb (2.26Kg)

Operating Temperature	23°F ~ 131°F (-5°C ~ 55°C)
Storage Temperature	-4°F ~ 140°F (-20°C ~ 60°C)
Storage Humidity	90% @ 40°C, non-condensing
Vibration	1Grms / 5~ 500Hz / operation
SHOCK	15 G peak acceleration (11 msec. duration)
EMC	CE/FCC Class A

DC Input

DC 12~24V

Type	Projected Capacitive Multi-Touch
Light Transmission	80% ± 3%
