ACP-1108

Mã sản phẩm: Không áp dụng Tình trạng: Còn hàng

Giá Liên hệ

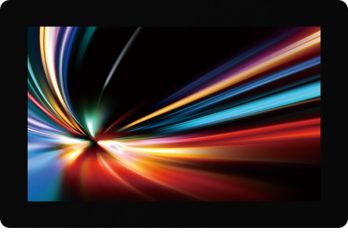

10.1” WXGA Android Based Panel PC with Rockchip™ RK3568

processor	Rockchip™ RK3568 Quad-Core Arm® Cortex®-A55 Processor
System Memory	LPDDR4 2GB/4GB (Optional)
LCD/CRT Controller
Ethernet	10/100/1000 Base TX x 2

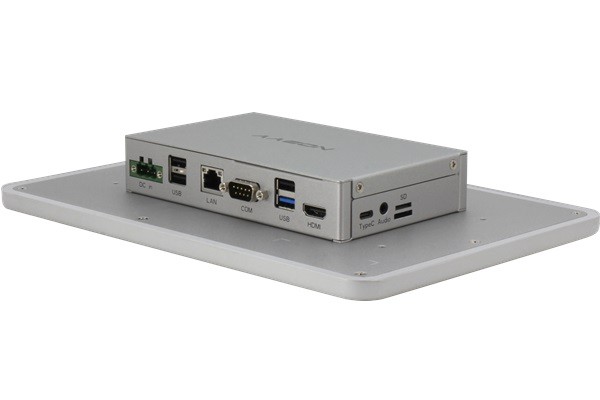

I/O Port	LAN x 2 COM x 2 USB 3.2 Gen 1 (Type-C OTG) x 1 (For System Recovery) USB 3.2 Gen 1 x 1 USB 2.0 x 3 HDMI x 1 Audio x 1
Storage Disk Drive	16GB eMMC and Micro-SD card
Expansion Slot	Full-size mini-PCIe slot x 1 (PCIe 3.0 [x1] or mSATA)
OS support	Android™ 12 / Debian

Construction	Aluminum Front Bezel + Metal Chassis
Mounting	VESA / Panel Mount
Dimension	10.5” x 7.2” x 1.5” (266.9mm x 184.5mm x 40mm)
Carton Dimension	13.3” x 10.2” x 5.9” (339mm x 260mm x 152mm)
Gross Weight	3.5 lb. (1.6Kg)
Net Weight

Operating Temperature	23°F ~131°F (-5°C ~ 50°C) with 0.5 m/s airflow
Storage Temperature	-4°F ~ 140°F (-20°C ~ 60°C)
Storage Humidity	90% @40°C; non-condensing
Vibration	1Grms / 5~ 500Hz / operation
SHOCK	15 G peak acceleration (11 msec. duration)
EMC	CE/FCC Class A Compatible

DC Input

DC 12~24V

Type	Projected Capacitive Multi-Touch
Light Transmission	0.9
