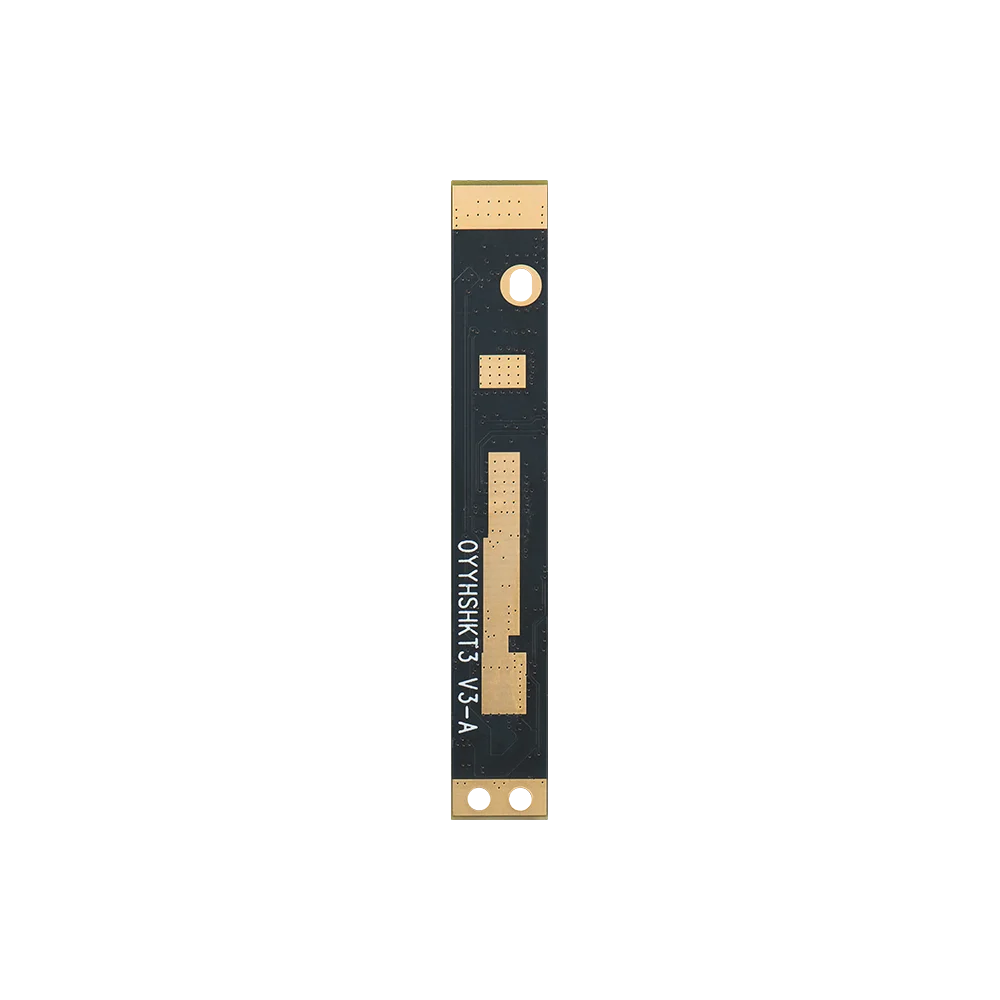

EV8U-LSN1-RSCA | USB 2.0 8MP Auto Focus Camera Module

Mã sản phẩm: Không áp dụng Tình trạng: Còn hàng

Giá Liên hệ

Model Name	EV8U-LSN1-RSCA
Module Type	USB 2.0 8MP Auto Focus Camera Module
Resolution (Max.)	8MP
Frame Rate (Max. Resolution)	20fps
Output I/F	USB 2.0
Sensor	Sony IMX179
Shutter	Rolling
Video Format	YUV422, MJPEG
Power Consumption	Approximate 2W (MJPEG @Max. Resolution )
Operating Temperature	0°C ~ 60°C
Sensor Size	1/3.2”
Pixel Size	1.4µm
Chroma Type	Color
Lens Type	Auto Focus (M5)
Dimension (W x L x H/mm)	62 x 9.5 x 6.5
Lens FOV (D / H / V)	72° / 61° / 47°
OS Support	Windows / Linux / Android / macOS
Housing	Board Level
Features	Auto Focus
Warranty	3 Years
