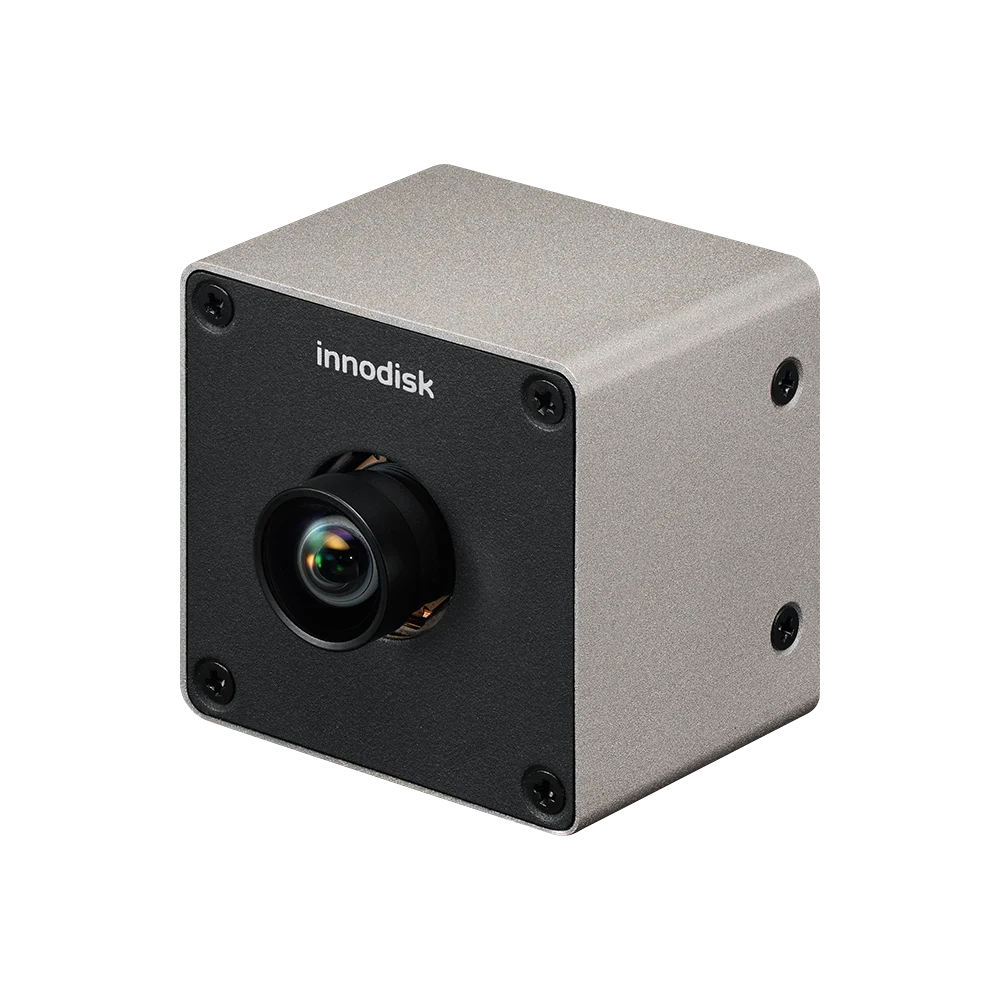

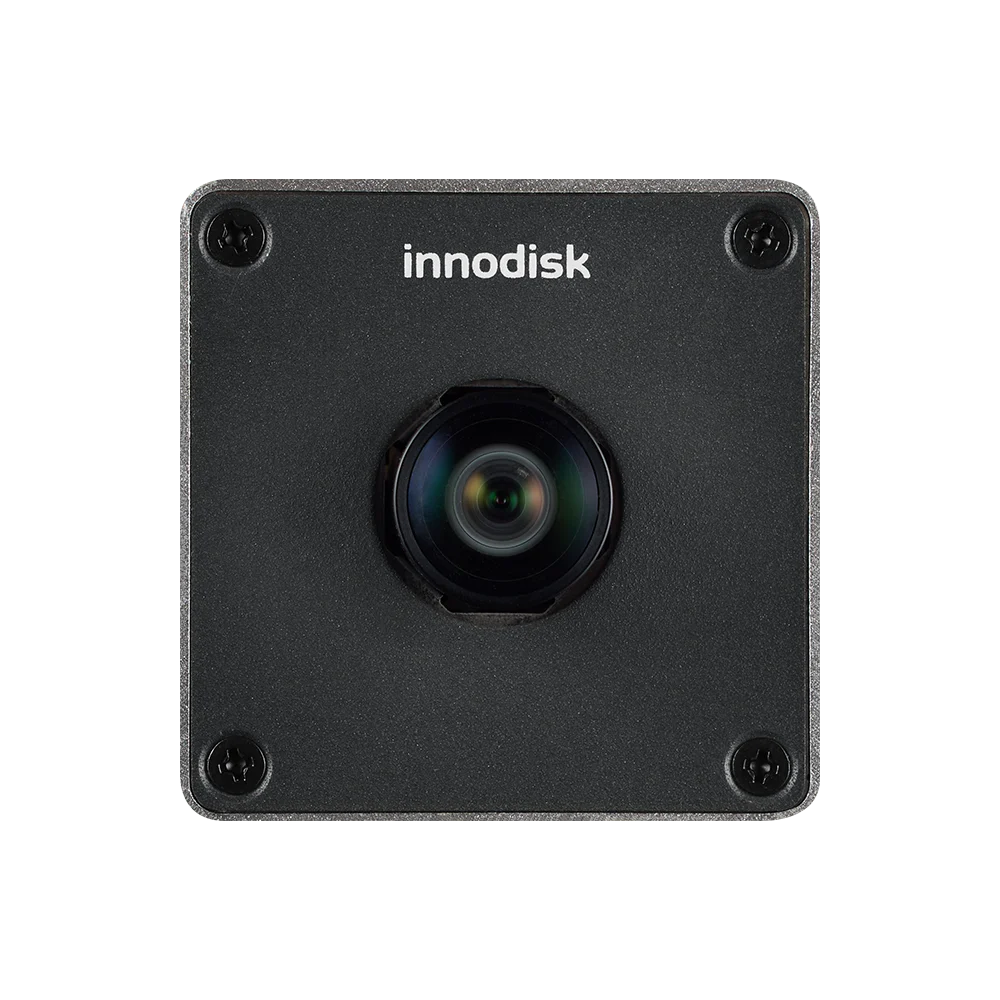

EV8U-LSM1-RLCA | USB 2.0 8MP Auto Focus Camera Module

Mã sản phẩm: Không áp dụng Tình trạng: Còn hàng

Giá Liên hệ

Model Name	EV8U-LSM1-RLCA
Module Type	USB 2.0 8MP Auto Focus Camera Module
Resolution (Max.)	8MP
Frame Rate (Max. Resolution)	30fps
Output I/F	USB 2.0
Sensor	Sony IMX415
Shutter	Rolling
Video Format	YUV422, MJPEG
Power Consumption	Approximate 2W (MJPEG @Max. Resolution)
Operating Temperature	0°C ~ 70°C
Sensor Size	1/2.8”
Pixel Size	1.45µm
Chroma Type	Color
Lens Type	Auto Focus (M12)
Focus range	30mm ~ Infinite
Dimension (W x L x H/mm)	38 x 38 x 29 41.4 x 41.4 x 44.6 (Housing)
Lens FOV (D / H / V)	89° / 81° / 51°
OS Support	Windows / Linux / Android / macOS

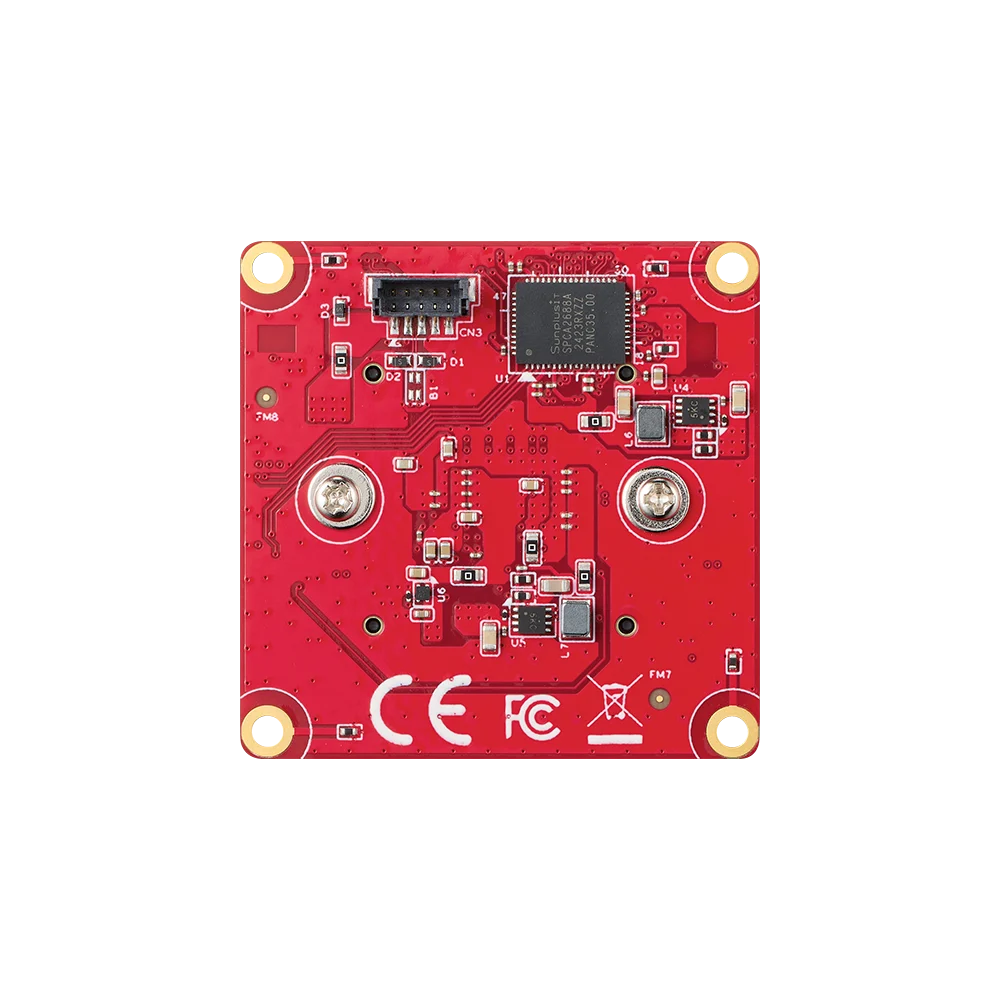

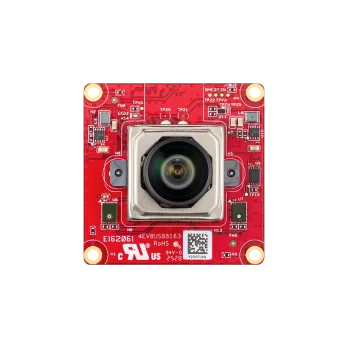

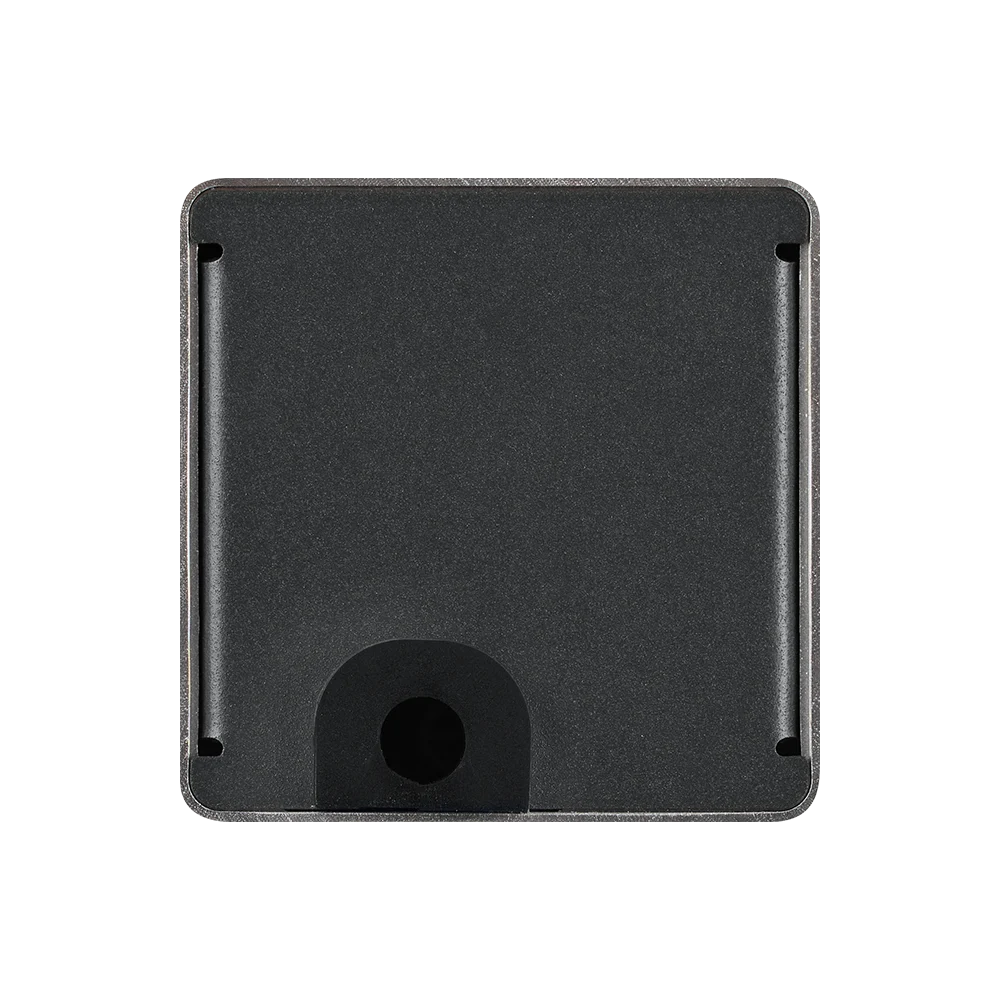

Housing	Board Level, Housing
Features	Auto Focus, Low Light, DMIC
Warranty	3 Years
