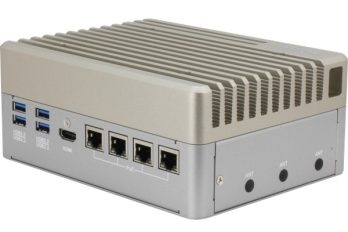

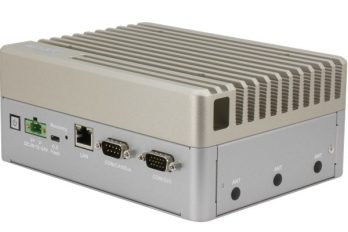

BOXER-8623AI

System
AI Accelerator NVIDIA® Jetson Orin Nano™
CPU 6-core Arm® Cortex®-A78AE ARMv8.2 64-bit CPU
System Memory: 4GB LPDDR5
8GB LPDDR5
Storage Device: M.2 2280 M Key x 1
Display Interface: HDMI 1.4 (Type-A) x 1
Ethernet: RJ-45 x 1 for GbE LAN
RJ-45 x 4 for GbE PoE/PSE 802.3af/at (Max.60W)
I/O: USB 3.2 Gen 2 (Type-A) x 4
DB-9 x 1 for RS-232 (Rx/Tx/CTS/RTS) x 1 and CANBus FD x 1
DB-15 x 1 for RS-232(Rx/Tx)/422/485 x 1 and DIO x 8
Micro USB x 1 for OS Flash
Power Button x 1
Recovery Button x 1
Antenna Hole x 6
Expansion: M.2 2280 M-Key x 1 (NVMe)
M.2 3042/3052 B-Key x 1
M.2 2230 E-Key x 1
SIM Slot x 1
Indicator Power LED x 1
OS Support: Linux (NVIDIA Jetpack™ 5.0 and up)
Power Supply
Power Requirement: 12V ~ 24V DC in with 2-pin Terminal Block x 1
Mechanical
Mounting Wall Mount
Dimensions: (W x D x H) 7.09” x 5.35” x 2.95” (180mm x 136mm x 75mm)
Gross Weight 7.7 lb (3.5kg)
Net Weight 5.5 lb (2.5kg)
Environmental
Operating Temperature 5°F ~ 149°F (-15°C ~ 65°C), according to IEC60068-2 with 0.5 m/s AirFlow
Storage Temperature -40°F ~ 185°F (-40°C ~ 85°C)
Storage Humidity 5% ~ 95% @ 40°C, non-condensing
Anti-Vibration 3.5Grm / 5~500Hz / Operation
Anti-Shock 50G peak acceleration
Certification CE/FCC class A
